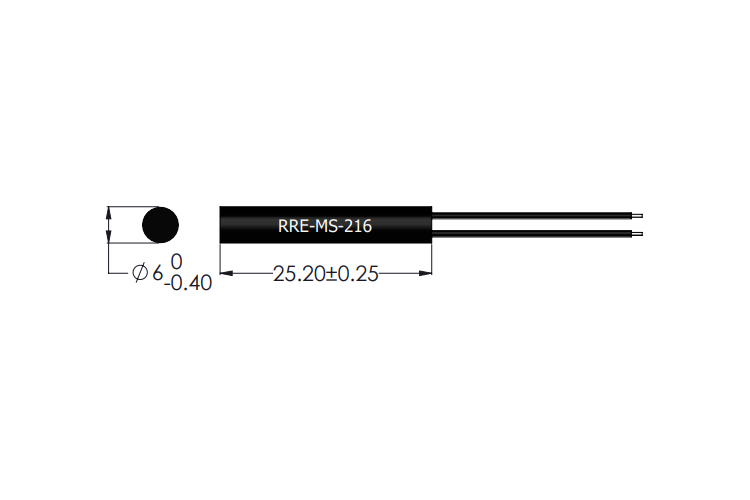

MS-216 Standard size Cylindrical Sensor

star

Features

10W Contact Rating. Normally Open contact. Three sensitivity bands. Sputtered Ruthenium Contact. Withstands higher Shock and Vibration.

add_circle

Benefits

Omni-polar. Does not require power for operation. RoHS Compliant. Not ESD Sensitive. Various Cables and Connectors Available.

Description

These cylindrical sensors are suitable for carrying up to 10W and is physically robust. Various activating distances are available depending on the magnet and the AT band used. This sensor can be supplied with non-standard connectors on request. All sensors are tested 100% for Operate AT, Release AT, Static Contact Resistance and Variable Contact Resistance before packing. Cylindrical Sensors can be used in pneumatic cylinder end position sensing applications. Being an omni-polar device, this sensor can be actuated with either a north pole or a south pole or both. Choosing the right AT band, magnet strength, and operating axis, will restrict the number of operates and releases to one.

Cylindrical and Rectangular Magnets

Standard magnets-RRE Drawing of Cylindrical MagnetsDrawing of Rectangular Bar Magnets starFeaturesNdFeB High Energy. Nickel coated. Energized Continue reading ->

Nov 18, 2020

Actuation Distances for MS-216 Cylindrical Sensor

MS-216 actuation-magnet parallel to sensor Operate and release distances for the MS-216 Cylindrical sensor in the three standard AT bands when actuated (as shown in the sketches) Continue reading ->

Oct 30, 2020

Electrical

Contact FormA
Contact Rating (max)W/VA10.0
Switching Current (max)A0.5
Carry Current (max)A1.50
DC Switching Voltage (max)VDC180
Breakdown Voltage (min)VDC200
Contact Resistance (max)150
Insulation Resistance (min)Ω109
Capacitance (typ)pF0.2

Miscellaneous

Operate Time (max)ms0.35
Bounce Time (max)ms0.30
Release Time (max)ms0.15
Resonance Frequency (typ)Hz>2000
Operating Frequency (max)Hz500
Operating Temperature Range°C-40 to +140
Shock Resistance (½Sin wave for 11ms)G30
Vibration Resistance (10-2000 Hz)G20

Ordering Code

MS-216-(Operate Band Code)-(Cable Length in mm)-(Cable Termination Code)

Operate Band Code
1AT10-15
2AT15-20
3AT20-25
Cable Termination CodeTermination Type
SStripped to 5.0 mm
TStripped and Tinned

Example: MS-216-3-1000-T denotes MS-216 Magnet Sensor in 20-25 Operate Band (AT), with 1000 mm cable length and Tinned Cable ends.

Other Special Configurations: Lower Static Contact Resistance, Dynamic Contact Resistance Limit, Special Release Limits.

Usage Notes

Here are some of the recommended usage notes to ensure maximum durability of this product. The complete usage notes are available here.

Ampere Turn Selection

Reed Sensor Manufacturer Cross Reference For any application, it is important to select the correct Ampere Turn (AT) or magnetic sensitivity of a Reed Switch, Reed Sensor or Continue reading ->

Aug 27, 2020

Effects of Temperature

Thermal sensor The normal operating temperature range for a reed contact is -40°C to +200°C, but too steep a rise or drop in temperature may Continue reading ->

Aug 27, 2020

Product Handling

Dropping Reed switch Reed Switch Handling Reed Switches, Reed Sensor and Magnet Sensors are sensitive devices that easily develop micro cracks in the glass Continue reading ->

Aug 31, 2020

Ferro-magnetic parts

Ferromagnetic parts Reed Switches use an alloy of Nickel and Iron with a few other elements that make the alloy Ferro-magnetic and having a low Remanence. Continue reading ->

Sep 4, 2019

Cable Handling

Twisting cables nearer to housing Magnet Sensor Cable Handling When using Reed Switches soldered to cables, or when using off the shelf Magnet Sensors with cables, some Continue reading ->

Sep 4, 2019

Reed Contact Protection Circuits

Inductive Load Protection Circuit It is assumed that the ideal reed switch load is a Resistive Load, but it is almost impossible to reduce any load to purely resistive. Continue reading ->

Aug 31, 2020

Applications

Although we can never restrict the use of a reed sensor to a particular field, the following is a list of some of the applications that the MS-216 Magnet Sensor is known to perform well.

Reed sensor in Surveyor’s Wheels for Measuring Distance

surveyor wheel Surveyor's Wheel A Surveyor's Wheel or a Trundle Wheel, is a device for measuring distance. Each revolution of the wheel measures a Continue reading ->

Nov 7, 2020

Sensors for Window Sun-shade Shutter Control

window shutter Shutter Control Application Smart Homes feature automatic sun-shades or blinds as they are also known, which are a movable panels that Continue reading ->

Nov 6, 2020

Reed switches and Reed Sensors in Barcode Scanners

Barcode Scanner Barcode scanners in supermarkets can be clicked on to a docking system that is integrated with the check-out conveyor belt. This helps Continue reading ->

Nov 6, 2020

Reed Sensors for Early Brake Sensing

Brake pedal Automobile Brake Pedal The Brake pedal of an automobile is a very important aspect of the vehicle which is used to give an indication Continue reading ->

Nov 7, 2020

Reed Sensors in Automobile Power windows

Car power window Automobile Power Window These days, most automobile windows can be raised or lowered using buttons near the seats or on the inside of Continue reading ->

Nov 7, 2020

Magnet sensors in Top-loading washing machines

washing machine lid position sensing Top-loading Washing Machine Traditional top-loading Washing Machines have some advantages over the front-loading ones. One does not Continue reading ->

Nov 6, 2020

Magnet sensors in Welding Equipment

proximity sensors in welding machine Welding Equipment Welding machine power supplies are classified as either Constant Current or as Constant Voltage types. In Constant Continue reading ->

Nov 7, 2020

Magnet sensors in End position sensing in Cylinders and Pistons

Reed switches in pneumatic linear slide Linear Actuator In industrial automation, cost effectiveness is the key to running a successful operation in today's world of Continue reading ->

Nov 7, 2020

Magnet sensors in Bicycle Speedometers

Reed switches in bicycle speedometer Bicycle Speedometer Fitness is always in, and people who exercise always need feedback on how many calories they have burnt, or how Continue reading ->

Nov 7, 2020

Reed switches in liquid detection probes

Deep bore reed switch probe Liquid Detection Probe Bore holes in the ground are bored or drilled for various purposes, primarily for drawing out water, gases or Continue reading ->

Nov 7, 2020

Accidental airbag deployment prevention

Reed switches in airbag deployment Airbag deployment The airbag module is designed to inflate extremely rapidly then quickly deflate during a collision or a rapid sudden Continue reading ->

Nov 7, 2020

Magnet Sensors in Door position sensing for Home Appliances

Reed switches in door position sensing Refrigerator Door Most home appliances such as Refrigerators, Washing Machines, Dishwashers or Clothes dryers are a requisite these Continue reading ->

Nov 6, 2020

Reed sensors and Magnet sensors in Commercial Coffee Machines

Reed switches in commercial coffee machine Coffee Machine Commercial coffee and tea vending machines are built with durability in mind as the number of cups served per day could Continue reading ->

Nov 6, 2020

Reed sensors in Contact protection Circuits

Reed switches in inrush current protection Pump causing in-rush current Contact protection is required for any heavy load switching device, such as pumps mechanical, magnetic or Continue reading ->

Nov 6, 2020

MS-216 Standard size Cylindrical Magnet Sensor
MS-216 standard size Cylindrical Sensor from RRE: 6.0 mm diameter, 10W, omnipolar, complete data sheet and technical specifications.
