R4 Ultra-miniature SMD Reed Sensor
These R4 ultra-miniature SMD reed sensors are designed for signal switching applications and have a size advantage over the standard size SMD reed sensor. As they are molded with flattened leads, no shock is transferred into the device when SMD formation takes place. Various activating distances are available depending on the magnet and the AT band used. The sensors are tested 100% for Operate AT, Release AT, Static Contact Resistance and Variable Contact Resistance before packing. The R4 Ultra-miniature reed sensor, Being an omni-polar device, this sensor can be actuated with either a north pole or a south pole or both. Choosing the right AT band, magnet strength, and operating axis, will restrict the number of operates and releases to one. All dimensions are in mm.

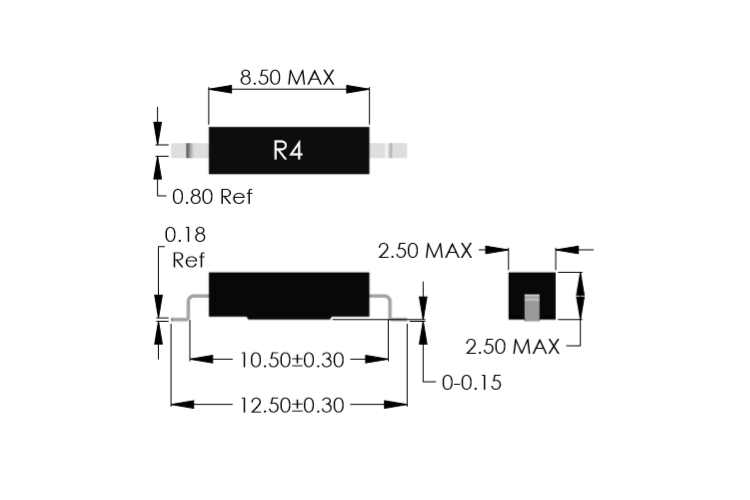

R4-S SMD Reed Sensor

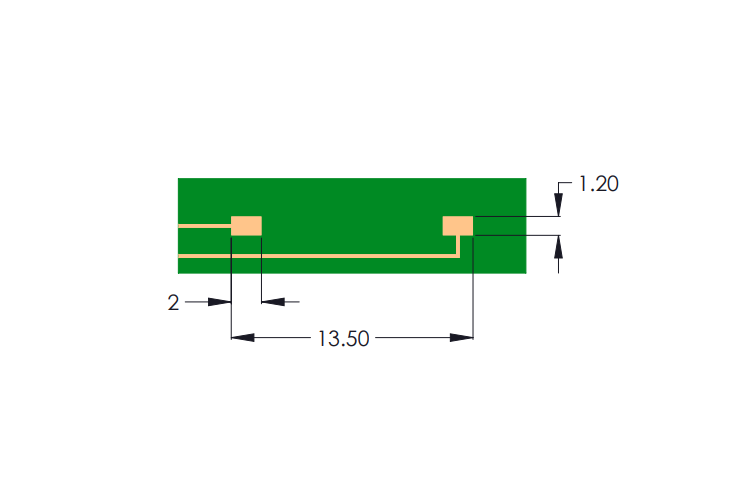

R4-S Reed Sensor PCB Layout drawing

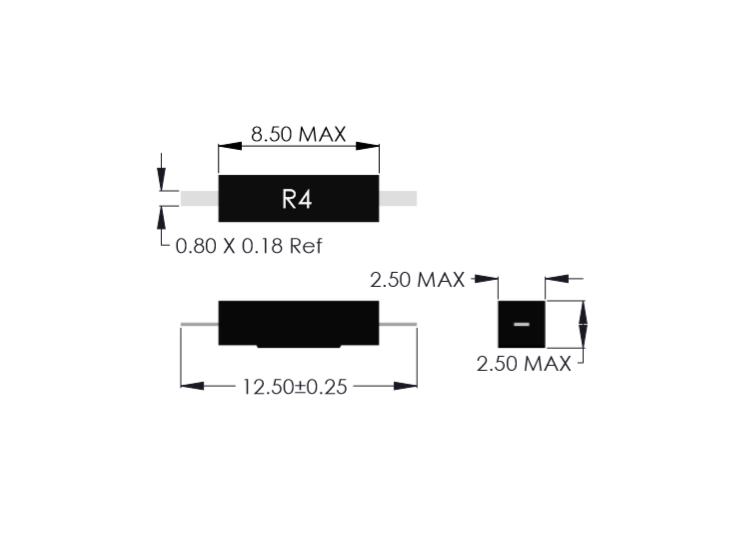

R4-F SMD Reed Sensor

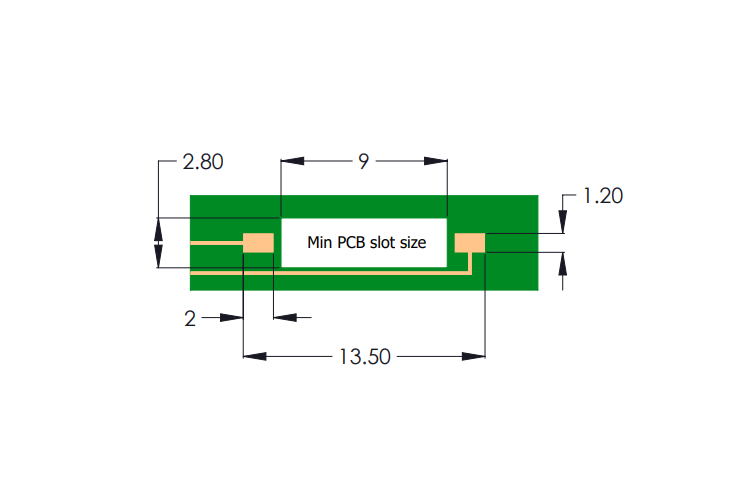

R4-F Reed Sensor PCB Layout drawing

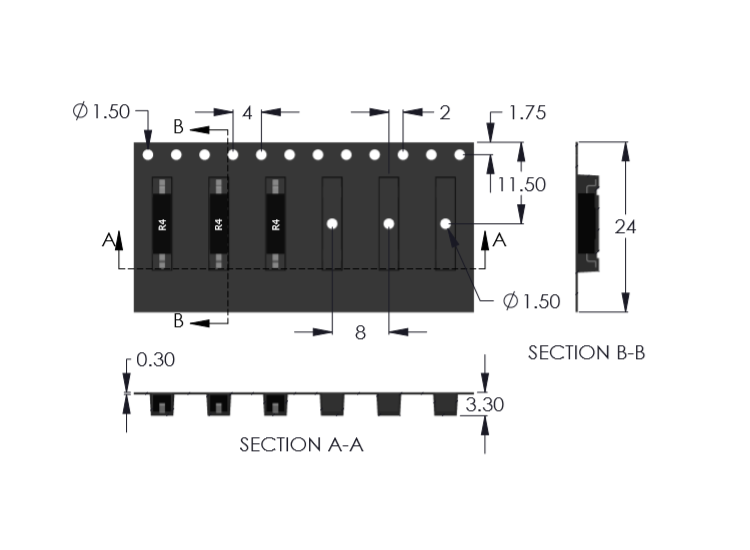

R4 Reed Sensor Packing Tape
Features
Normally Open contact. Two sensitivity bands. Molded with internal blades parallel to SMD feet. Packed in Tapes for automatic assembly.
Actuation Distances for R4 Ultra Miniature Reed Sensors
 |
Operate and release distances for the R4 ultra-miniature reed sensor in the two lead formations and two standard AT bands when actuated
Continue reading
Jun 4, 2021 |
Cylindrical and Rectangular Magnets
 |
Drawing of Cylindrical MagnetsDrawing of Rectangular Bar Magnets starFeaturesNdFeB High Energy. Nickel coated. Energized
Continue reading
Nov 18, 2020 |
Electrical
| Contact Form | A | |
| Contact Rating (max) | W/VA | 10.0 |
| Switching Current (max) | A | 0.5 |
| Carry Current (max) | A | 0.5 |
| DC Switching Voltage (max) | VDC | 100 |
| Breakdown Voltage (min) | VDC | 150 |
| Contact Resistance (max) | mΩ | 200 |
| Insulation Resistance (min) | Ω | 109 |
| Capacitance (typ) | pF | 0.2 |
Miscellaneous
| Operate Time (max) | ms | 0.35 |
| Bounce Time (max) | ms | 0.30 |
| Release Time (max) | ms | 0.10 |
| Resonance Frequency (typ) | Hz | <2000 |
| Operating Frequency (max) | Hz | 500 |
| Operating Temperature Range | °C | -40 to +140 |
| Shock Resistance (½Sin wave for 11ms) | G | 30 |
| Vibration Resistance (10-2000 Hz) | G | 20 |
Ordering Code
R4-(Formation Code)-(Operate Band Code)
| Formation Code | Lead Type |
| S | Gull-wing SMD |
| F | Low Profile SMD |
| Operate Band Code | ||
| 1 | AT | 10-15 |
| 2 | AT | 15-20 |
Examples: R4-S-1 denotes R4 Reed Sensor with Gull-wing SMD formed leads in 10-15 Operate band (AT). R4-F-2 denotes R4 Reed Sensor with Low Profile SMD formed leads, in 15-20 Operate Band (AT).
Other Special Configurations: Lower Static Contact Resistance, Dynamic Contact Resistance Limit, Higher Insulation Resistance, Special Release Limits, Gold plated leads.
