Standard Size Reed Sensor, R2

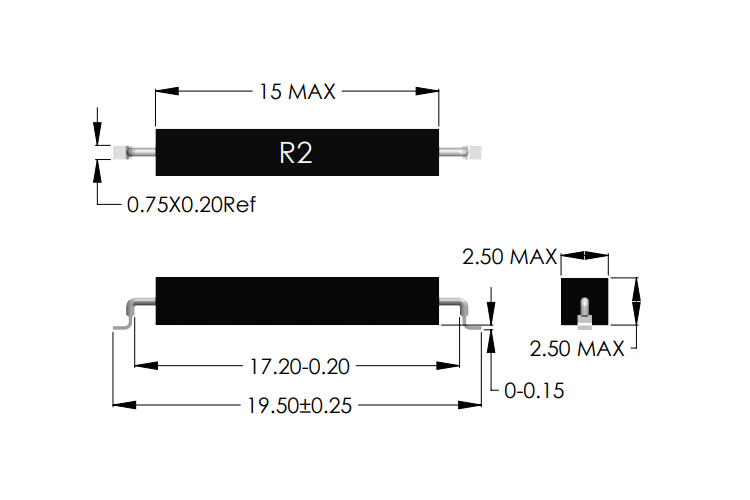

R2-S Gull-wing SMD Formed Reed Sensor
R2-S Gull-wing SMD Formed Reed Sensor Pad Layout

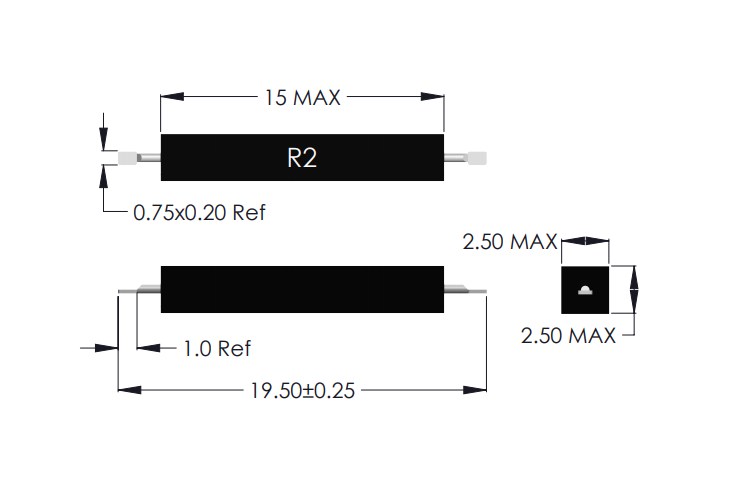

R2-F Low Profile SMD Formed Reed Sensor
R2E-F Low Profile SMD Formed Reed Sensor Pad Layout

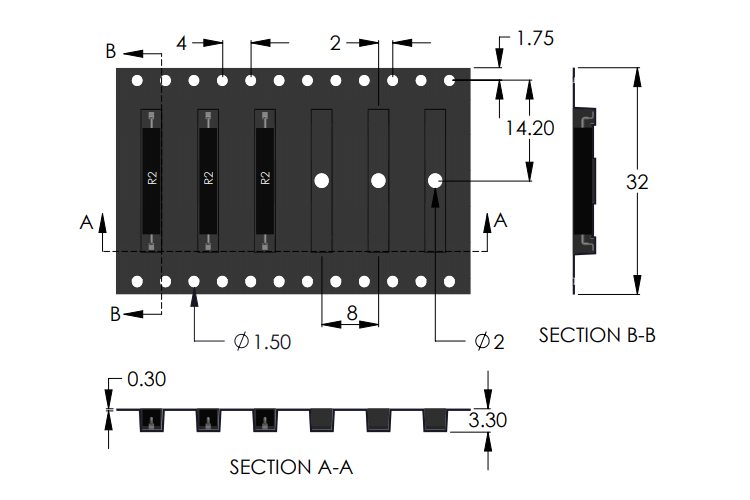

R2 Reed Sensor Carrier Tape
Features
10W Contact Rating. Normally Open contact. Three sensitivity bands. Two Lead Formations. Packed in Tapes for automatic assembly.
Benefits
Omni-polar. Does not require power for operation. Sputtered Ruthenium Contact. RoHS Compliant. Not ESD Sensitive. Packed in Tape and Reel.
📝Description
The standard size reed sensor, R2, is specifically engineered to handle moderate currents and feature an SMD pitch slightly wider than our miniature SMD reed sensors. Their design includes molded, pre-flattened leads to prevent shock during SMD assembly. The sensors offer various activating distances depending on the magnet and AT band utilized.
Before packaging, each sensor undergoes rigorous 100% testing for operate and release AT, Contact Resistance, and Variable Contact Resistance. Known for their omnipolar nature, these sensors can be triggered by either a north or south pole magnet, or both simultaneously. Optimal configuration of the AT band, magnet strength, and operating axis ensures precise control over the number of operate and release cycles, typically limited to one.
All dimensional measurements are provided in millimeters (mm), ensuring compatibility and ease of integration into diverse electronic applications. These sensors are ideal for applications where reliable, low-current switching is required in a compact SMD package. Whether used in consumer electronics, automotive systems, or industrial controls, the standard size R2 standard reed sensors offer dependable performance and longevity.
With their robust design and comprehensive testing procedures, this R2 standard size reed sensor meet stringent quality standards, making them a preferred choice for engineers seeking reliable and versatile reed switch solutions. Their ability to operate with flexibility in magnet polarity and precise control over switching cycles ensures consistent performance in demanding environments.
Magnets for Actuating Reed Switches and Reed Sensors
 |
Drawing of Cylindrical MagnetsDrawing of Rectangular Bar Magnets starFeaturesNdFeB High Energy. Nickel coated. Energized
Continue reading
Sep 3, 2024 |
Actuation Distances for R2 Reed Sensors
 |
Operate and release distances for the R2 ultra-miniature reed sensor in the three lead formations and two standard AT bands when actuated
Continue reading
Sep 3, 2024 |
⚡️Electrical
| Contact Form | A | |
| Contact Rating (max) | W/VA | 10.0 |
| Switching Current (max) | A | 0.5 |
| Carry Current (max) | A | 1.50 |
| DC Switching Voltage (max) | VDC | 180 |
| Breakdown Voltage (min) | VDC | 200 |
| Contact Resistance (max) | mΩ | 150 |
| Insulation Resistance (min) | Ω | 109 |
| Capacitance (typ) | pF | 0.2 |
📊Miscellaneous
| Operate Time (max) | ms | 0.35 |
| Bounce Time (max) | ms | 0.30 |
| Release Time (max) | ms | 0.15 |
| Resonance Frequency (typ) | Hz | >2000 |
| Operating Frequency (max) | Hz | 500 |
| Operating Temperature Range | °C | -40 to +140 |
| Shock Resistance (½Sin wave for 11ms) | G | 30 |
| Vibration Resistance (10-2000 Hz) | G | 20 |
⚙️Ordering Code
R2-(Formation Code)-(Operate Band Code)
| Formation Code | Lead Type |
| S | Gull-wing SMD |
| F | Low Profile SMD |
| Operate Band Code | ||
| 1 | AT | 10-15 |
| 2 | AT | 15-20 |
| 3 | AT | 20-25 |
Examples: R2-S-3 denotes R2 Reed Sensor with Gull wing SMD formed leads, in 20-25 Operate Band (AT). R2-1-F denotes R2 Reed Sensor with Low profile SMD formed Leads, in 10-15 Operate Band (AT).
Other Special Configurations: Lower Static Contact Resistance, Dynamic Contact Resistance Limit, Higher Insulation Resistance, Special Release Limits, Gold plated leads.
🛠️Usage Notes
Here are some of the recommended usage notes to ensure maximum durability of this product. The complete usage notes are available here.
Ampere Turn Selection for your Application
 |
Selecting the appropriate Ampere Turn (AT) or magnetic sensitivity for a Reed Switch, Reed Sensor, or Magnet Sensor is crucial in any
Continue reading
Jul 24, 2024 |
Handling of Reed Switches
 |
Handling of Reed Switches Reed Switches, Reed Sensors, and Magnet Sensors are delicate devices prone to developing micro cracks in
Continue reading
Jun 17, 2024 |
Reflow Soldering of Reed Switches
 |
Reflow Soldering is a sophisticated process used in electronics manufacturing to solder components onto printed circuit boards (PCBs). It
Continue reading
Jun 17, 2024 |
Soldering of Reed Switches
 |
Soldering Reed Switches and Reed Sensors requires meticulous handling to safeguard these delicate components against inadvertent damage.
Continue reading
Jun 17, 2024 |
Ferro-magnetic Parts
 |
Reed Switches utilize a nickel-iron alloy, sputter coated with additional Ruthenium to render it ferromagnetic while maintaining low
Continue reading
Jun 17, 2024 |
Protection Circuits for Reed Switches
 |
It is assumed that the ideal reed switch load is a Resistive Load, but it is almost impossible to reduce any load to purely resistive.
Continue reading
Jun 17, 2024 |
