Ultra Miniature Reed Sensors, R5

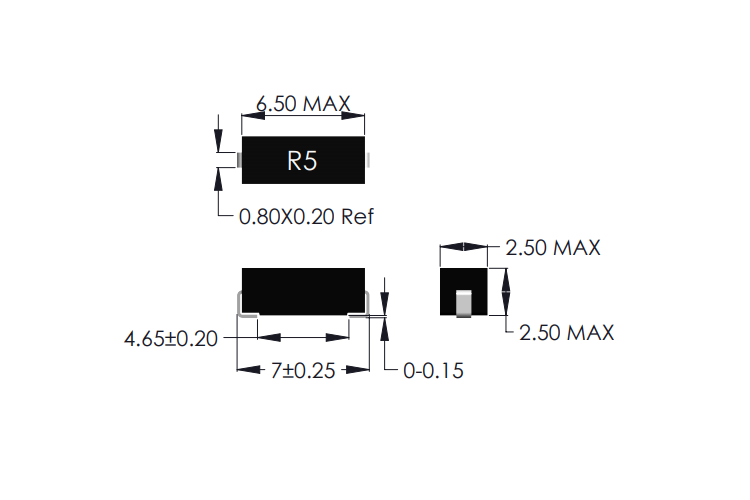

R5-J SMD Reed Sensor

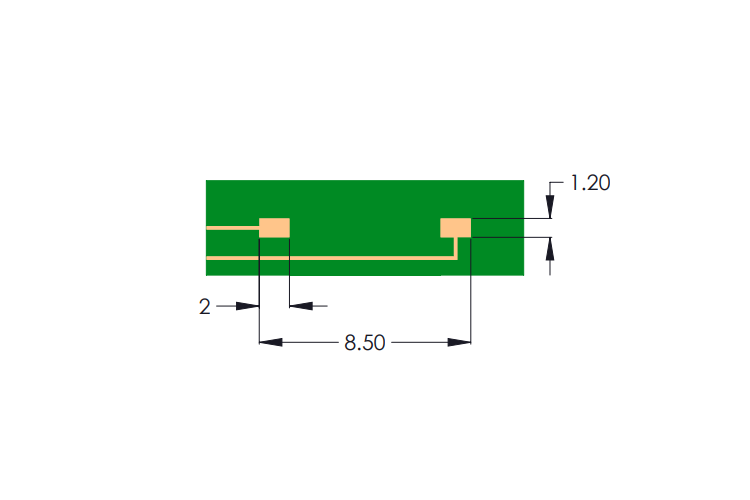

R5-J Reed Sensor PCB Layout drawing

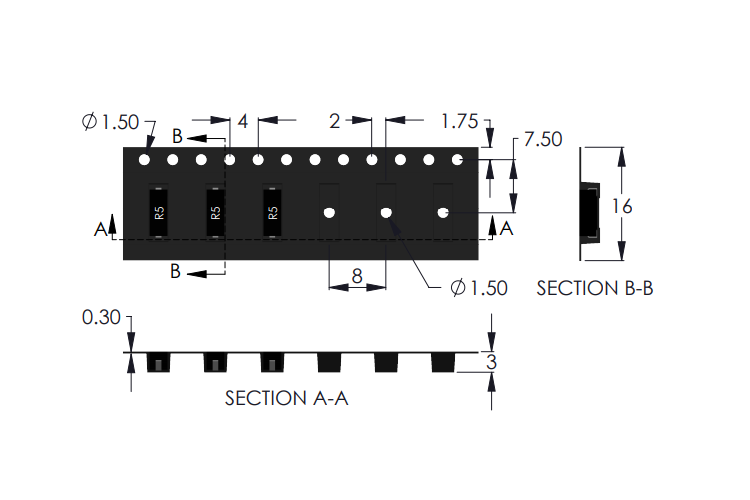

R5-J Carrier Tape

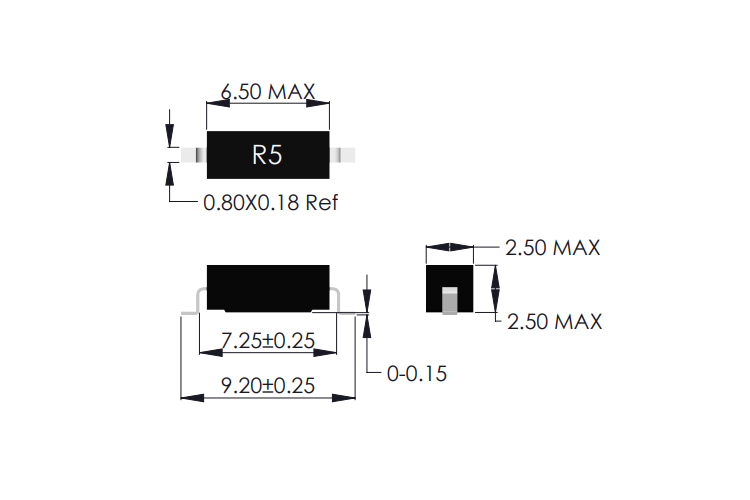

R5-S SMD Reed Sensor

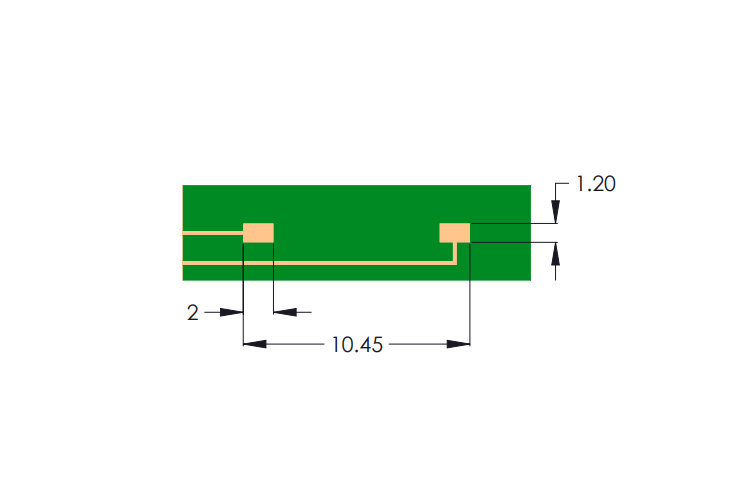

R5-S Reed Sensor PCB Layout drawing
R5-S Carrier Tape
Features
Normally Open contact. Two sensitivity bands. Two Lead Formations. Packed in Tapes for automatic assembly.
Benefits
Omni-polar. Does not require power for operation. Sputtered Contact. RoHS Compliant. Not ESD Sensitive.
📝Description
These Ultra Miniature Reed Sensors are specially crafted for precise signal switching applications, offering a distinct size advantage compared to standard SMD reed sensors. Featuring molded pre-flattened leads, these sensors ensure minimal shock absorption during SMD integration. Available in various actuating distances determined by the magnet and AT band employed, they are meticulously tested to guarantee reliable performance. Testing includes 100% verification of Operate AT, Release AT, Static Contact Resistance, and Variable Contact Resistance prior to packaging, ensuring consistent quality.
Designed as an Omni-polar device, these ultra miniature reed sensors respond equally well to north or south pole actuation, or both simultaneously. Optimal selection of the AT band, magnet strength, and operating axis allows precise control over the number of operates and releases, ensuring single-action functionality when needed. All dimensions are detailed in millimeters (mm), providing clarity for integration into diverse applications.
The compact size and robust performance make these Ultra Miniature Reed Sensors ideal for applications where space is limited yet reliability is critical. Their ability to withstand shock during assembly, coupled with comprehensive testing protocols, ensures they meet stringent performance standards in diverse environments. Whether in industrial automation, consumer electronics, or automotive systems, these sensors offer a dependable solution for efficient signal switching needs.
Actuation Distances for R5 Ultra-miniature Reed Sensors
 |
Operate and release distances for the R5 ultra-miniature reed sensor in the two lead formations and two standard AT bands when actuated
Continue reading
Sep 3, 2024 |
Magnets for Actuating Reed Switches and Reed Sensors
 |
Drawing of Cylindrical MagnetsDrawing of Rectangular Bar Magnets starFeaturesNdFeB High Energy. Nickel coated. Energized
Continue reading
Sep 3, 2024 |
⚡️Electrical
| Contact Form | A | |
| Contact Rating (max) | W/VA | 5.0 |
| Switching Current (max) | A | 0.35 |
| Carry Current (max) | A | 0.5 |
| DC Switching Voltage (max) | VDC | 100 |
| Breakdown Voltage (min) | VDC | 150 |
| Contact Resistance (max) | mΩ | 200 |
| Insulation Resistance (min) | Ω | 109 |
| Capacitance (typ) | pF | 0.2 |
📊Miscellaneous
| Operate Time (max) | ms | 0.35 |
| Bounce Time (max) | ms | 0.30 |
| Release Time (max) | ms | 0.10 |
| Resonance Frequency (typ) | Hz | <2000 |
| Operating Frequency (max) | Hz | 500 |
| Operating Temperature Range | °C | -40 to +140 |
| Shock Resistance (½Sin wave for 11ms) | G | 30 |
| Vibration Resistance (10-2000 Hz) | G | 20 |
⚙️Ordering Code
R5-(Formation Code)-(Operate Band Code)
| Formation Code | Lead Type |
| S | Gull-wing SMD |
| J | J-Lead SMD |
| Operate Band Code | ||
| 1 | AT | 7-12 |
| 2 | AT | 12-17 |
Examples: R5-S-1 denotes Gull-wing SMD version in 7-12 Operate Band (AT). R5-J-2 denotes J-Lead Formed SMD Lead version in 12-17 Operate Band (AT).
Other Special Configurations: Lower Static Contact Resistance, Dynamic Contact Resistance Limit, Higher Insulation Resistance, Special Release Limits, Gold plated leads.
