LV-1925 Reed Switch for Line Voltage switching

The LV-1925 is a Line Voltage Reed Switch is designed for endurance at switching line voltage loads of 230V. Two versions are capable of switching 30W and 60W loads at 230V. When used with contact protection, direct switching of tungsten filament lamps is possible. The cropped version of this Line Voltage Reed Switch is suitable for smaller plastic housings and can be soldered to cables, the SMD version is suitable for reflow on PCBs, and the vertical and horizontal mount versions are suitable for mounting on through hole PCBs.

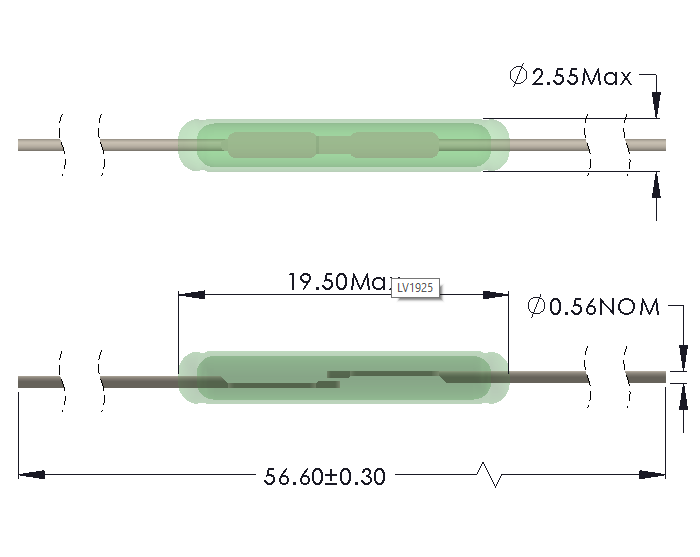

  • Drawing of LV-1925 Reed Switch with Full Length Leads

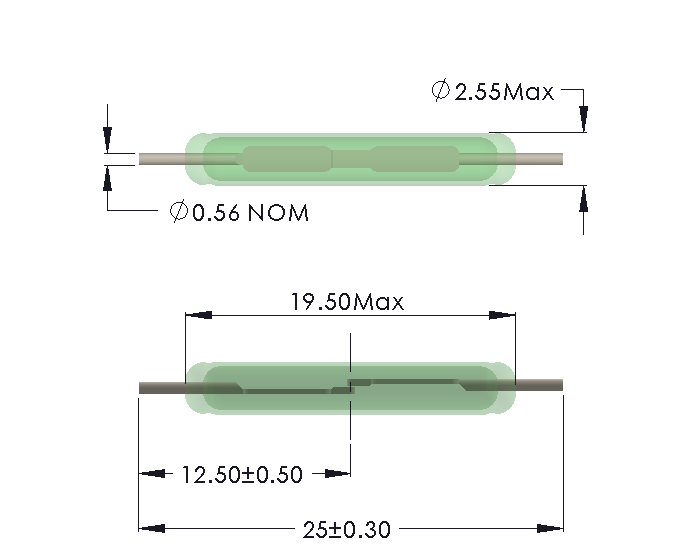

  • LV-1925 Reed Switch with Cropped Leads

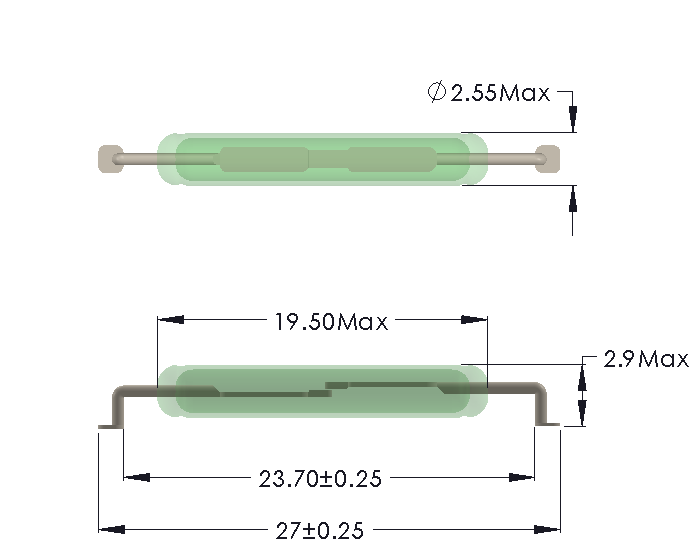

  • Drawing for SMD mounting

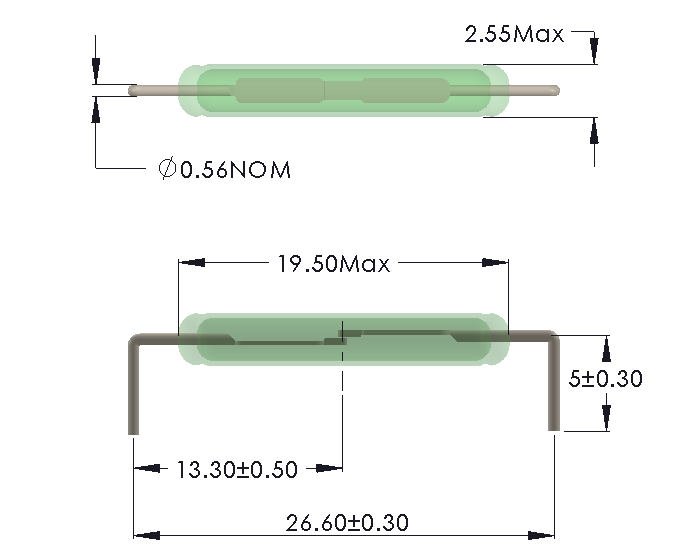

  • Drawing for Horizontal mounting

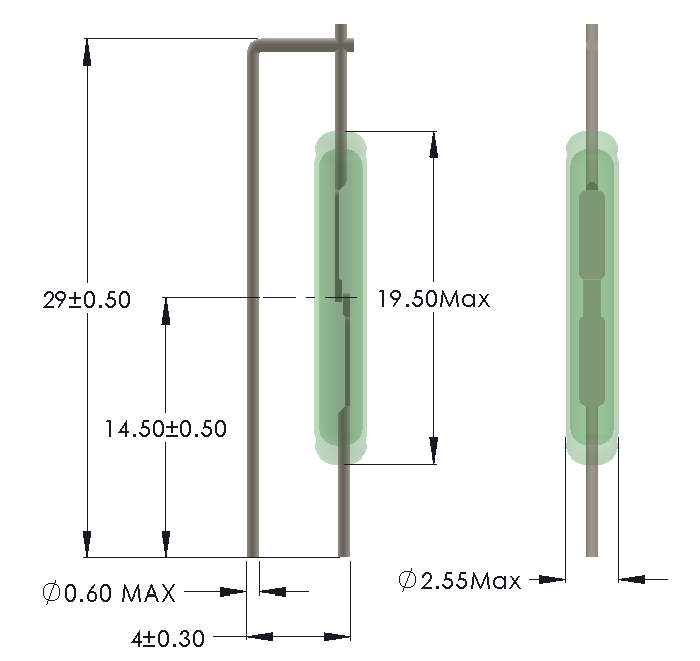

  • Drawing for Vertical mounting
star

Features

Contact Rating Configurable. Ruthenium contact. Robust 20.0 mm Glass. Normally Open. Inert gas filled.

add_circle

Benefits

Omni-polar. Does not require power for operation. Sputtered Contact. RoHS Compliant. Not ESD Sensitive.

Cylindrical and Rectangular Magnets

Standard magnets-RRE Drawing of Cylindrical MagnetsDrawing of Rectangular Bar Magnets starFeaturesNdFeB High Energy. Nickel coated. Energized Continue reading ->

Nov 18, 2020

Actuation Distances for LV-1925 Formed Reed Switch

LV-1925 reed switch actuation distance For easy selection of AT band and Magnet for an application, we offer Actuation distances for the LV-1925 Reed Switch in cropped, SMD, Continue reading ->

Dec 2, 2020

Electrical

Contact FormA
Contact Rating (max)W/VA60.0
Switching Current (max)A0.5
Carry Current (max)A2.5
DC Switching Voltage (max)VDC230
AC Switching Voltage (max)VAC230
Breakdown Voltage (min)VDC350
Contact Resistance (max)100
Insulation Resistance (min)Ω1011
Capacitance (typ)pF0.2

Miscellaneous

Operate Time (max)ms1.0
Bounce Time (max)ms0.60
Release Time (max)ms0.15
Resonance Frequency (typ)Hz>2000
Operating Frequency (max)Hz300
Operating Temperature°C-40 to +200
Shock Resistance (½Sin wave for 11ms)G50
Vibration Resistance (10-2000Hz)G20
Test Coil Number717 102 002

Ordering Code

LV-1925-(Contact Rating Code)-(Operate Band)-(Formation Code)

Contact Rating CodeLM
Corresponding WattageW/VA3060
Operate BandAT20-5030-60
Corresponding Release BandAT5-2010-30
Formation CodeLead Type
Full Length Leads
CCropped
SSMD
HHorizontal Mount
VVertical Mount

Examples: LV-1925-L-20-25 denotes 30 W contact rating in 20-25 Operate Band (AT) with Full Length leads. LV-1925-M-30-38-V denotes 60 W contact rating in 30-38 Operate Band (AT) with Leads cropped and welded for Vertical Mounting.

Other Special Configurations: Lower Static Contact Resistance, Dynamic Contact Resistance Limit, Higher Insulation Resistance, Special Release Limits, Gold plated leads.

Usage Notes

Here are some of the recommended usage notes to ensure maximum durability of this LV-1925 Line Voltage Reed Switch. The complete usage notes are available here.

Ampere Turn Selection

Reed Sensor Manufacturer Cross Reference For any application, it is important to select the correct Ampere Turn (AT) or magnetic sensitivity of a Reed Switch, Reed Sensor or Continue reading ->

Aug 27, 2020

Product Handling

Dropping Reed switch Reed Switch Handling Reed Switches, Reed Sensor and Magnet Sensors are sensitive devices that easily develop micro cracks in the glass Continue reading ->

Aug 31, 2020

Manual Soldering

Soldered Reed switch Soldering of Reed Switches and Reed Sensors requires some care to ensure that these delicate devices are not inadvertently damaged. Damage Continue reading ->

Nov 10, 2020

Ferro-magnetic parts

Ferromagnetic parts Reed Switches use an alloy of Nickel and Iron with a few other elements that make the alloy Ferro-magnetic and having a low Remanence. Continue reading ->

Sep 4, 2019

Potting and Encapsulation

Dispensing unit Epoxy dispensing Nozzle When potting or encapsulating reed switch assemblies in custom housings, selection of materials are important. Continue reading ->

Sep 4, 2019

Reed Contact Protection Circuits

Inductive Load Protection Circuit It is assumed that the ideal reed switch load is a Resistive Load, but it is almost impossible to reduce any load to purely resistive. Continue reading ->

Aug 31, 2020

Applications

Although we can never restrict the use of a reed switch to a particular field, the following is a list of some of the applications that the LV-1925 Line Voltage Reed Switch is known to perform well.

Magnet Sensors for Securing Fire safety and Emergency Exits

fire safety exit Emergency Exit Building codes provide standards for the safety, welfare and general health of the personnel occupying the buildings. Continue reading ->

Nov 7, 2020

Float Switches in Portable Air Conditioners

portable ac Portable Cooler Air Conditioners remove heat and moisture from an occupied space thereby improving the comfort of the occupants. The Continue reading ->

Nov 6, 2020

Reed Switches in Exhaust Emissions Sensing

Automotive exhaust fume emission Automobile Exhaust Pollution, greenhouse gases and smog play a large role in global warming and it is most important to ensure that Continue reading ->

Nov 7, 2020

Magnet sensors in Top-loading washing machines

washing machine lid position sensing Top-loading Washing Machine Traditional top-loading Washing Machines have some advantages over the front-loading ones. One does not Continue reading ->

Nov 6, 2020

Magnet sensors in Welding Equipment

proximity sensors in welding machine Welding Equipment Welding machine power supplies are classified as either Constant Current or as Constant Voltage types. In Constant Continue reading ->

Nov 7, 2020

High Voltage Relays

High voltage relays Reed Relay The power industry uses many types of high voltage relays for signal switching as well as high current switching, in Continue reading ->

Nov 7, 2020

Magnet sensors for Bridge control in Airports

Reed switches in airport bridge control Airplane Bridge The bridge control operator needs to steer the bridge towards the airplane door for docking. The bridge controller is Continue reading ->

Nov 7, 2020

Reed switches in Magnet Extensometers

Reed switches in magnet extensometer Extensometer Whenever there is a deep excavation that is done prior to construction, the excavation has to be monitored prior to Continue reading ->

Nov 7, 2020

Reed switches and Float switches in Water tank control

Reed switches in water tank control Water tank control Water is a scarcity in most of the major cities of the world, and in residences and apartments where an overhead Continue reading ->

Nov 6, 2020

Magnet sensors in Adjustable Chairs

Reed switches in adjustable chairs Adjustable Chair Motorized chairs are used in dentists offices and hair-cutting salons, the latter being the more pleasing! The dentist Continue reading ->

Nov 7, 2020

Reed sensors in Power switches for explosive areas

Reed switches in explosive area Explosive Areas Explosion proof enclosures come in different grades and house components like switches, plug, controls, knobs, and Continue reading ->

Nov 7, 2020

Magnet sensors in End position sensing in hoists and fork lifts

Reed switches in end position sensing in fork lifts Fork Lift Hoists and Fork Lifts are used to transport materials over short distances, mostly for loading and unloading in to container Continue reading ->

Nov 7, 2020

Reed switches in liquid detection probes

Deep bore reed switch probe Liquid Detection Probe Bore holes in the ground are bored or drilled for various purposes, primarily for drawing out water, gases or Continue reading ->

Nov 7, 2020

Reed sensors in Wind Vanes

Reed switches in wind vanes Wind Vane A weather vane is an instrument used to show the direction of the wind. A regular weather vane usually consists of a pointer Continue reading ->

Nov 7, 2020

Reed sensors in Survival rafts and ELTs

Reed switches in survival rafts Emergency Raft Survival rafts contain water sensors which trigger the compressed air cylinder to inflate the raft when dropped into the Continue reading ->

Nov 7, 2020

Flow Meters for checking Lake currents

Reed switches in flow_meter Lake Current Meter Underwater currents in lakes and other water bodies are caused by various factors such as pressure gradients due to Continue reading ->

Nov 7, 2020

Magnet sensors for Anchor, Rudder, and Hatch position detection

Reed switches in hatch position sensing Boat Hatch Conventional and recreational sailing craft derive power from sails, and the sailor adjusts the alignment of each sail, Continue reading ->

Nov 7, 2020

Magnet sensors in Anti-lock braking system (ABS)

Reed switches in ABS control system Anti-lock Braking Anti-lock braking system or ABS for short, is a safety system used on aircraft and on vehicles, such as cars, Continue reading ->

Nov 7, 2020

Reed switches in Defective lamp detection

Reed switches in Defective lamp detection Automobile Lamp Automobiles these days provide a wide range of information ranging from door and window position, wind screen viper Continue reading ->

Nov 7, 2020

Reed switches in Coolant flow sensing

Reed switches in coolant flow sensing Radiator Coolant A coolant is a fluid, that is used to reduce or regulate the temperature of a system, like an engine through a Continue reading ->

Nov 7, 2020

Reed Switches in Automobile Relays

Reed switches in heater and coolers Automobile Dashboard Reed Switches find various applications in automobile electronics, for signal switching using reed relays, and in Continue reading ->

Nov 7, 2020

Reed switch based Reed Relays in Food Processors and Mixers

Reed switches in food processor Food Processor Food Processors use Reed Relays to trigger an output when the coil current exceeds a set, designed-in point. Reed Relays Continue reading ->

Nov 6, 2020

Reed switches in Instant Water heaters and Power showers

Reed switches in instant water heater Bathrooms appliances such as Instant Water Heaters and power showers use reed switch based Flow switches to detect if the water supply Continue reading ->

Nov 6, 2020

Thermal Reed Switches in Rice Cookers

Reed switches in rice cooker heater control Rice Cooker Rice Cookers are kitchen appliances used to boil rice and continue to keep the rice warm and hydrated. As more heat is Continue reading ->

Nov 30, 2020

Reed sensors and Magnet sensors in Commercial Coffee Machines

Reed switches in commercial coffee machine Coffee Machine Commercial coffee and tea vending machines are built with durability in mind as the number of cups served per day could Continue reading ->

Nov 6, 2020

Reed switches in Reed Relays for Fax Machines

Fax machine Fax Machine A Facsimile Machine or Fax Machine enables the transmission of documents over telephone lines. Although these machines Continue reading ->

Nov 6, 2020

Magnet Sensors in Fluid Metering

Water meter Fluid Meter In most large cities, utility companies or closed communities run piped Water and Liquefied Petroleum Gas, LPG, to all Continue reading ->

Nov 7, 2020

LV-1925 60W Reed Switches for Line Voltage switching
19.0mm x 2.5mm, complete data sheet and technical specifications. This Reed Switch supersedes RRA 2021 and RRA 200 and can be considered a direct equivalent. Customers can safely use LV-1925 in place of ORD 2211, KSK-1A52, RI 46/48, HSR-1015R or MKA-20103.
