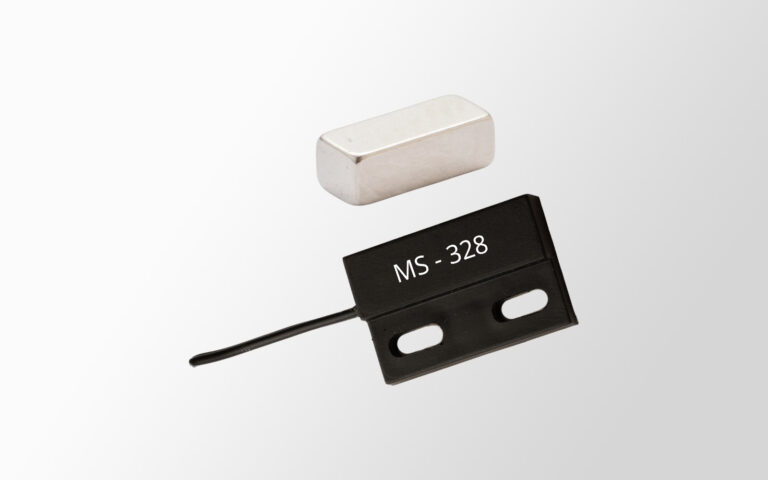

Actuation Distances for MS-328 Flat Pack Sensor

Operate and release distances for the MS-328 standard size Flat pack sensor in the three standard AT bands when actuated (as shown in the sketches) with NdFeB standard magnets is shown below. Although some of the AT band / magnet combinations will produce similar actuating distances, selecting the right AT band and magnet for an application is important and can be done by going through our AT band FAQ and our magnet selection guide.

MS-328 Actuation distances

MS-324 magnet actuation
Magnet actuation direction

Operate Band 20-25 (AT)

MagnetDimensionsOperate DistanceRelease Distance
NDR-T4.0 x 1.5 x 1.5N/AN/A
NDR-S6.0 x 2.5 x 2.5 4.5 – 6.07.0 – 9.0
NDR-M8.0 x 3.0 x 3.09.0 – 11.012.0 – 14.0
NDR-I12.0 x 3.5 x 3.513.0 – 15.016.0 – 19.0
NDR-L19.0 x 4.0 x 4.017.0 – 20.021.0 –  25.0
NDC-TØ2.0 x 4.0N/AN/A
NDC-SØ3.0 x 7.06.5 – 8.09.0 – 11.0
NDC-MØ4.0 x 10.011.0 – 14.015.0 – 18.0
NDC-IØ6.0 x 12.019.0 – 23.024.0 – 28.0
NDC-LØ8.0 x 15.026.0 – 31.033.0 – 38.0

Operate Band 25-30 (AT)

MagnetDimensionsOperate DistanceRelease Distance
NDR-T4.0 x 1.5 x 1.5N/AN/A
NDR-S6.0 x 2.5 x 2.53.0 – 4.56.0 – 7.0
NDR-M8.0 x 3.0 x 3.07.0 – 9.010.0 – 12.0
NDR-I12.0 x 3.5 x 3.510.0 – 12.015.0 – 16.0
NDR-L19.0 x 4.0 x 4.013.0 – 17.020.0 – 22.0
NDC-TØ2.0 x 4.0N/AN/A
NDC-SØ3.0 x 7.05.0 – 6.58.0 – 9.0
NDC-MØ4.0 x 10.09.0 – 11.014.0 – 15.0
NDC-IØ6.0 x 12.015.0 – 19.022.0 – 24.0
NDC-LØ8.0 x 15.021.0 – 26.030.0 – 33.0

Operate Band 30-35 (AT)

MagnetDimensionsOperate DistanceRelease Distance
NDR-T4.0 x 1.5 x 1.5N/AN/A
NDR-S6.0 x 2.5 x 2.5 2.0 – 3.05.0 – 6.0
NDR-M8.0 x 3.0 x 3.06.0 – 7.09.0 – 10.0
NDR-I12.0 x 3.5 x 3.59.0 – 10.013.0 – 15.0
NDR-L19.0 x 4.0 x 4.012.0 – 13.017.0 – 20.0
NDC-TØ2.0 x 4.0N/AN/A
NDC-SØ3.0 x 7.04.0 – 5.07.0 – 8.0
NDC-MØ4.0 x 10.08.0 – 9.012.0 – 14.0
NDC-IØ6.0 x 12.014.0 – 15.020.0 – 22.0
NDC-LØ8.0 x 15.020.0 – 21.028.0 – 30.0
