Airbag deployment Using Reed Switch based Seat Sensors

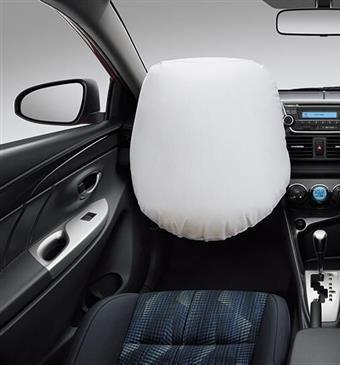

Modern vehicles are equipped with sophisticated airbag systems designed to deploy rapidly and deflate quickly during collisions or rapid deceleration events. These systems comprise multiple airbags strategically positioned throughout the vehicle to provide comprehensive protection for occupants and mitigate the risk of injury.

In addition to frontal airbags for the driver and front passenger, many vehicles feature side airbags, curtain airbags, and knee airbags to safeguard occupants from various impact angles.

To ensure precise deployment of airbags only where occupants are present, crash sensors are utilized to detect the location of occupants within the vehicle. Reed switch-based sensors play a crucial role in this process, offering a reliable method for detecting passenger seating positions. By incorporating a magnet beneath each seat, the weight of a seated passenger causes the magnet to move closer to a reed switch, activating it and sending a signal to the vehicle’s microprocessor.

This information is stored by the microprocessor and utilized during a collision event to determine which airbags should be deployed. By accurately identifying the presence of occupants in specific seating positions, the airbag deployment system can selectively trigger deployment only where needed, optimizing occupant protection and minimizing the risk of unnecessary airbag deployment.

According to research conducted by the Insurance Institute for Highway Safety (IIHS), properly functioning airbag systems significantly reduce the risk of serious injury or death in frontal crashes. By incorporating advanced sensor technologies such as reed switches, vehicle manufacturers enhance the effectiveness and precision of airbag deployment systems, ultimately enhancing occupant safety in the event of a collision.

Application Classification

Applications are classified as Position Sensing, Pulse Counting, Electromagnetic or Relay, Temperature Sensing or Magnet Biasing types. This application is classified as follows and the link gives more information on best practices to help select the most suitable AT band and matching magnet.

Position sensing Type

When an application requires the end position of a movement sensed, or the sensing of a part when it comes into a zone, or when the Continue reading ->

Mar 21, 2025

Recommended Products

The Reed Switches and Sensors used in such precise airbag deployment applications need to be robust, durable and efficient in meeting a high life expectancy. Our engineers work hard in life testing our products under various conditions, and our intention is to ensure end product durability and life. Although we wouldn’t want to restrict any of our products for use in only certain applications, the recommended products for use in this application are listed below.
