Magnet Sensors for Two Wheeler and E-Bike Side Stand Sensing

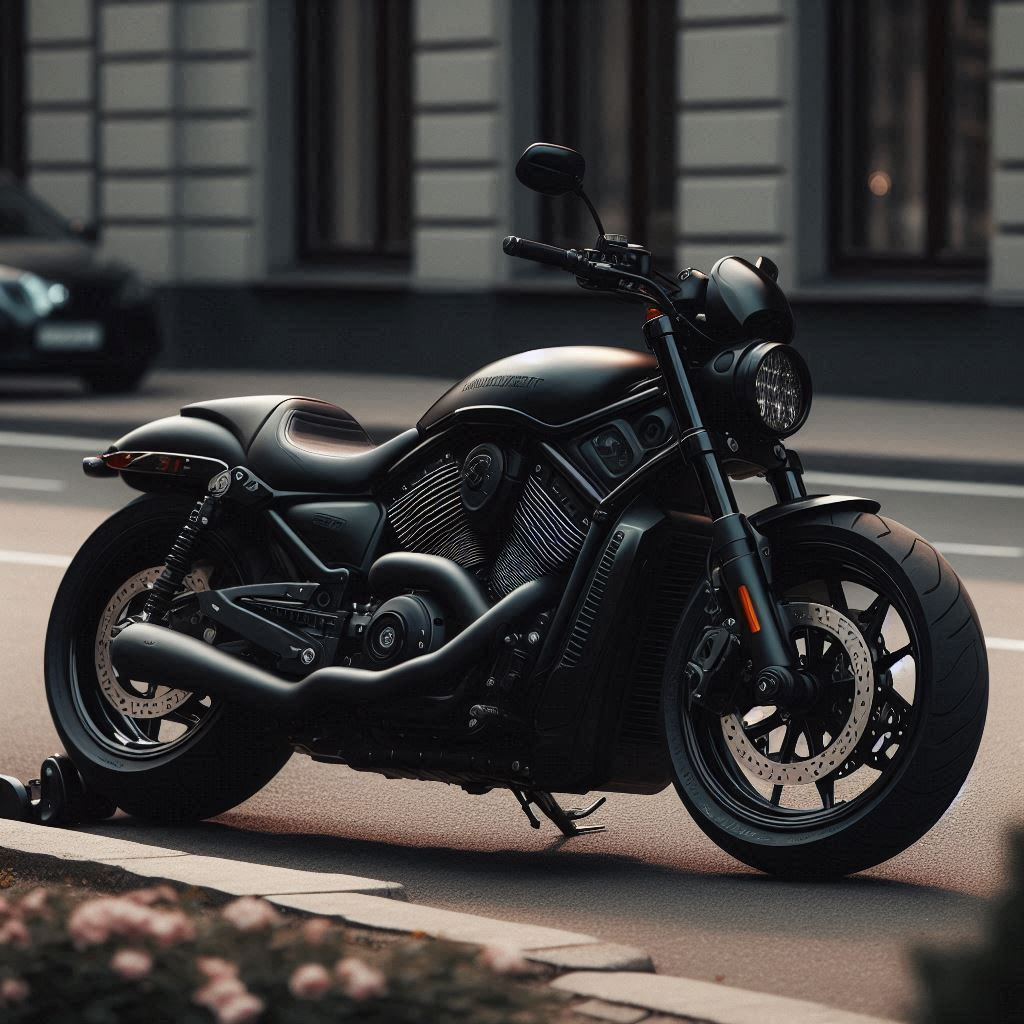

Two wheeler Side stand
Side stand

Motorcycles, Scooters and other motorized E-bikes have a side stand and a main stand under the chassis. A quick and easy motion of the riders foot gets the side stand out and helps park the vehicle. The problem arises when these motorized two wheelers are started up and driven away without raising the side stand as this could cause a serious accident during turns. This is where Magnet Sensors help by sensing if the side stand has been raised and if not, give an indication on the instrument panel, as soon as the engine is started.  Magnet Sensors have high repeatability when working in dirty applications and in dirty environments such as the under carriage without any change in the actuating distance. The basic principles of position sensing remain the same. The Magnet Sensor can be fitted on the chassis near the side stand, with a magnet fixed on the moving stand.

Application Classification

Applications are classified as Position Sensing, Pulse Counting, Electromagnetic or Relay, Temperature Sensing or Magnet Biasing types. This application is classified as follows and the link gives more information on best practices to help select the most suitable AT band and matching magnet.

The Reed Switches and Magnet Sensors used in such applications need to be robust, durable and efficient in meeting a high life expectancy. Our engineers work hard in life testing our products under various conditions, and our intention is to ensure end product durability and life. Although we wouldn’t want to restrict any of our products for use in only certain applications, the recommended products for use in this application are listed below.

SM-1322 Sub Miniature Reed Switch

Sub Miniature Reed Switch Size This Form A type SM-1322 Sub Miniature Reed Switch is built with a 2.25 mm diameter glass with a higher wall thickness for better glass to Continue reading ->

Nov 8, 2022

MS-225, M5 Threaded Cylindrical Sensor

M5 threaded cylindrical sensor MS-225 Threaded Magnet Sensor drawing starFeatures10W Contact Rating. Normally Open contact. Three sensitivity bands. Sputtered Continue reading ->

Nov 20, 2020

MS-228, M8 Threaded Cylindrical Sensor

M8 threaded cylindrical sensor MS-228 M8 Threaded Sensor Drawing starFeatures30W Contact Rating. Normally Open contact. Three sensitivity bands. Sputtered Ruthenium Continue reading ->

Nov 20, 2020

MO-1422 Miniature Off-Centre Contact Reed Switch

Off-centre Contact Miniature Reed Switch Size This MO-1422 Miniature Off-Centre Contact Form A type Reed Switch is designed for highly sensitive magnet applications when the Continue reading ->

Dec 2, 2020
