Reed Relays and Electronics India Limited Incorporated in 1971
×

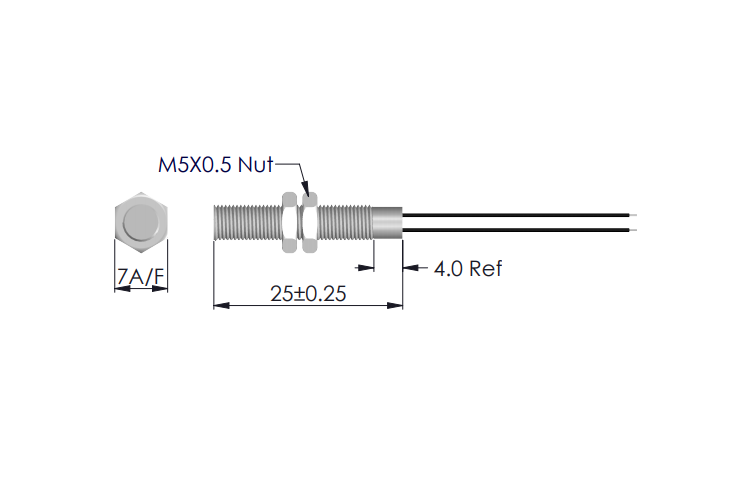

M5 Threaded Sensor Cylindrical Sensor, MS-225

star

Features

10W Contact Rating. Normally Open contact. Three sensitivity bands. Sputtered Ruthenium Contact. Higher Shock Limits. 0.5 mm pitch M5 Threaded Barrel.

add_circle

Benefits

Omni-polar. Does not require power for operation. RoHS Compliant. Not ESD Sensitive. Various Cables and Connectors Available. For rugged industrial use.

📝Description

This M5 threaded Magnet sensor is specifically designed for easy mounting in threaded holes as small as M5, making it versatile for applications where compact size and robust performance are essential. Capable of switching loads up to 10W, it is ideal for scenarios requiring frequent adjustments in positioning. Depending on the type of magnet and AT band chosen, the sensor offers a range of activating distances, ensuring precise operation tailored to specific application needs.

To accommodate diverse integration requirements, the sensor can be customized with non-standard connectors upon request, facilitating seamless integration into various industrial and consumer electronic systems. Prior to shipment, rigorous 100% testing is conducted on each sensor to validate its performance across critical parameters including Operate AT, Release AT, Static Contact Resistance, and Variable Contact Resistance. This meticulous testing process ensures that every sensor meets stringent quality standards, guaranteeing reliable and consistent performance upon installation.

M5 threaded sensors like this brass variant are particularly well-suited for applications demanding durability and dependable performance, such as pneumatic cylinder end position sensing. As an omni-polar device, the sensor responds equally to both north and south magnetic poles, providing flexibility in magnet orientation to suit different operational environments and requirements.

Engineers can optimise this threaded sensor functionality by selecting the appropriate AT band, magnet strength, and operating axis, thereby ensuring precise control over switching operations. This customisation minimizes the risk of unintended switching events, enhancing overall system reliability and operational efficiency in critical industrial settings. More information can be found in our actuation distance guide.

This M5 threaded cylindrical sensor combines compact design, customizable features, and rigorous testing protocols to deliver reliable switching solutions for demanding applications. Its robust construction, adaptability, and consistent performance make it an ideal choice where reliability, precision, and durability are paramount considerations.

Magnets for Actuating Reed Switches and Reed Sensors

Standard magnets-RRE Drawing of Cylindrical MagnetsDrawing of Rectangular Bar Magnets starFeaturesNdFeB High Energy. Nickel coated. Energized Continue reading ->

Sep 3, 2024

Actuation Distances for MS-225 Cylindrical Sensor

MS-225 actuation-magnet parallel to sensor Operate and release distances for the MS-225 M5 Threaded Magnet Sensor in the three standard AT bands when actuated (as shown in the Continue reading ->

Sep 3, 2024

⚡️Electrical

Contact FormA
Contact Rating (max)W/VA10.0
Switching Current (max)A0.5
Carry Current (max)A1.50
DC Switching Voltage (max)VDC180
Breakdown Voltage (min)VDC200
Contact Resistance (max)150
Insulation Resistance (min)Ω109
Capacitance (typ)pF0.2

📊Miscellaneous

Operate Time (max)ms0.35
Bounce Time (max)ms0.30
Release Time (max)ms0.15
Resonance Frequency (typ)Hz>2000
Operating Frequency (max)Hz500
Operating Temperature Range°C-40 to +70
Shock Resistance (½Sin wave for 11ms)G50
Vibration Resistance (10-2000 Hz)G20

⚙️Ordering Code

MS-225-(Operate Band Code)-(Cable Length in mm)-(Cable Termination Code)

Operate Band Code
1AT10-15
2AT15-20
3AT20-25
Cable Termination CodeTermination Type
SStripped to 5.0 mm
TStripped and Tinned

Example: MS-225-1-500-T denotes MS-225 Threaded Sensor in 10-15 Operate Band (AT), with 500 mm cable length and Tinned cable ends.

Other Special Configurations: Lower Static Contact Resistance, Dynamic Contact Resistance Limit, Special Release Limits.

🛠️Usage Notes

Here are some of the recommended usage notes to ensure maximum durability of this product. The complete usage notes are available here.
