Reed switches in Reed Relays for Fax Machines

Fax machine
Fax Machine

A Facsimile Machine or Fax Machine enables the transmission of documents over telephone lines. Although these machines gained maximum usage in the 1980s, businesses in the new millennium still continue to maintain a fax machine, for sending signed copies of documents etc.

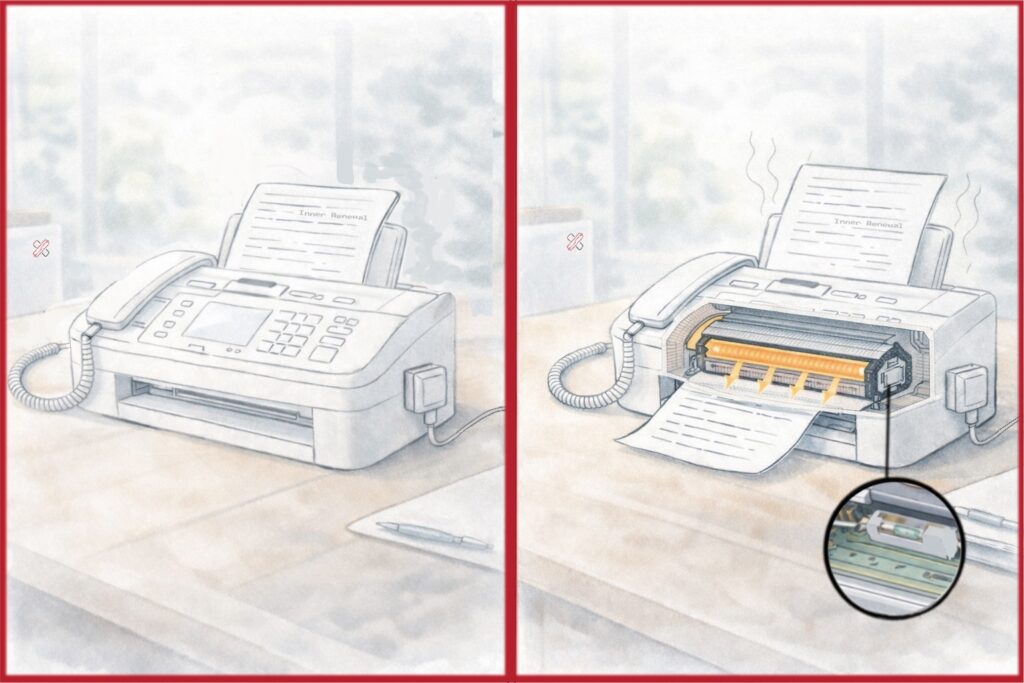

Today, the technology of fax machines have improved a lot and data is sent using the Internet instead of the phone lines. All paper copiers in offices come with in built fax capabilities. Even still, Reed Switch based Reed Relays continue to be used on such devices for switching larger loads such as for heating up the toners or for driving the motors that feed paper etc.

Ultra miniature Reed Switches are used in such Reed Relays and are manufactured by winding a coil around the reed switches. Special reed relays which have low inductance can be used in radio frequency (RF) switching applications to ensure that there is no power loss. The Reed Relay makes it simple to switch higher loads with a signal load.

Application Classification

Applications are classified as Position Sensing, Pulse Counting, Electromagnetic or Relay, Temperature Sensing or Magnet Biasing types. This application is classified as follows and the link gives more information on best practices to help select the most suitable AT band and matching magnet.

Electromagnetic or Relay Type

Reed switches in food processor Reed Relay in Food Processor Application When it is necessary to control a circuit load by using a separate low-power signal, or where Continue reading ->

Nov 7, 2020

The Reed Switches and Sensors used in such applications need to be robust, durable and efficient in meeting a high life expectancy. Our engineers work hard in life testing our products under various conditions, and our intention is to ensure end product durability and life. Although we wouldn’t want to restrict any of our products for use in only certain applications, the recommended products for use in this application are listed below.

MM-1018 Micro Miniature Reed Switch

Micro Miniature Reed Switch Size This 10.0 mm long, Form A type Micro Miniature reed switch is designed for moderate power, low load applications. The fast operate Continue reading ->

Jun 2, 2021

SM-1322 Sub Miniature Reed Switch

Sub Miniature Reed Switch Size This Form A type SM-1322 Sub Miniature Reed Switch is built with a 2.25 mm diameter glass with a higher wall thickness for better glass to Continue reading ->

Dec 2, 2020

LV-1925 Reed Switch for Line Voltage switching

Reed Switch for Line voltage switching The LV-1925 is a Line Voltage Reed Switch is designed for endurance at switching line voltage loads of 230V. Two versions are capable of Continue reading ->

Dec 2, 2020
