Float Switches in Portable Air Conditioners

Air Conditioners remove heat and moisture from an occupied space thereby improving the comfort of the occupants. The air conditioning of a room is usually planned during construction of the space, so that the drain pipes and other gas pipes in the case of split air conditioners are laid into the walls before plastering is done, for aesthetic reasons. For people who have not planned for air conditioning in a space, portable units are available, and these are easily transported wherever required.

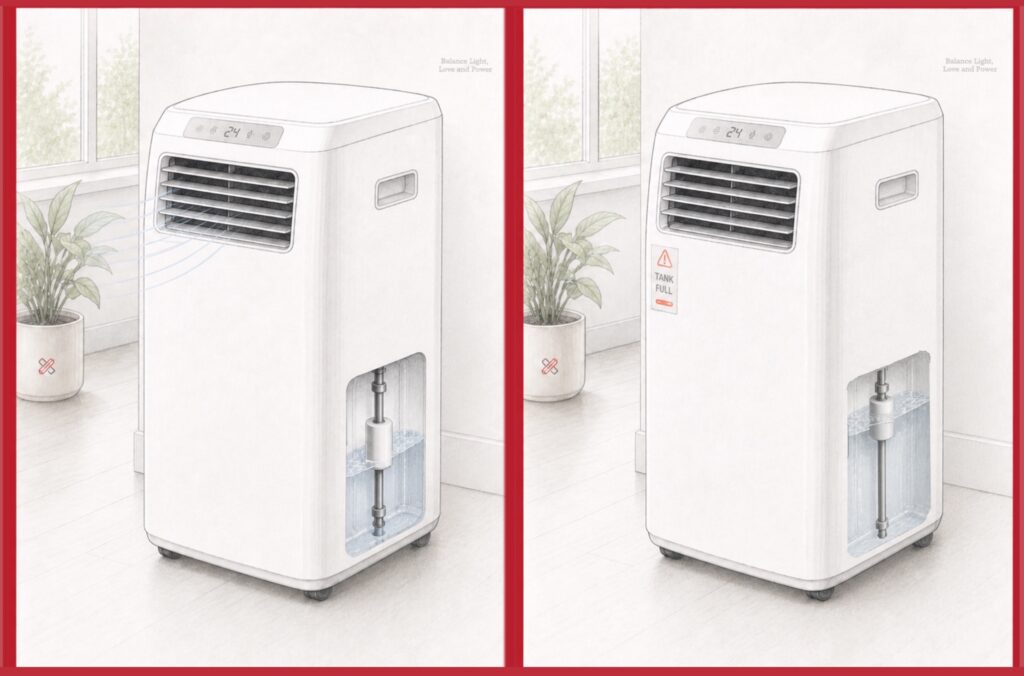

Regular air conditioners cool an area by first removing the humidity in the room and ejecting it the water via the drain pipe. Portable ACs also need to do this, but the water needs to be filled into a tank as it cannot be expelled from the system. When the water in the tank get filled up, it needs to be evacuated manually. This is where reed switches help sense the level of water in the tank. Reed Switch based float switches are fitted in these tanks to trigger an audio-visual alarm to the occupants of the room asking them to drain the tank without which further cooling will not be possible.

Application Classification

Applications are classified as Position Sensing, Pulse Counting, Electromagnetic or Relay, Temperature Sensing or Magnet Biasing types. This application is classified as follows and the link gives more information on best practices to help select the most suitable AT band and matching magnet.

Position sensing Type

When an application requires the end position of a movement sensed, or the sensing of a part when it comes into a zone, or when the Continue reading -> Sep 29, 2024

Recommended Products

The Reed Switches and Sensors used in such applications need to be robust, durable and efficient in meeting a high life expectancy. Our engineers work hard in life testing our products under various conditions, and our intention is to ensure end product durability and life. Although we wouldn’t want to restrict any of our products for use in only certain applications, the recommended products for use in this application are listed below.

Standard Size Reed Sensor, R2

R2-S Gull-wing SMD Formed Reed SensorR2-S Gull-wing SMD Formed Reed Sensor Pad LayoutR2-F Low Profile SMD Formed Reed SensorR2E-F Low Continue reading -> Sep 29, 2024

Off-Centre Contact Reed Switch, MO-1422

MO-1422 Miniature Off-Centre Contact Reed Switch with Full Length LeadsMO-1422 Miniature Off-Centre Contact Reed Switch with Cropped Continue reading -> Sep 3, 2024

Close Differential Reed Switch, MC-1425

MC-1425 Close Differential Reed Switch with Full Length LeadsMC-1425 Close Differential Reed Switch with Cropped LeadsMC-1425 Close Continue reading -> Sep 3, 2024
